冷过滤器 塞点过滤器
品牌安森塔
产品产地：中国
交货时间：7 天内
供应能力：工厂直供
型号AST-CFPP2
介绍：
The Cold Filter Plugging Point Filter is a laboratory instrument designed to measure the ability of petroleum products to pass through a filter at low temperatures, thereby assessing their flow characteristics in cold environments. Being equipped with refrigeration bath and other accessories, it can be used to determine cold filter plugging point of distillate fuels.This test is crucial for ensuring the proper function of heating oils, diesel fuels, and other petroleum products during winter or in low-temperature regions.The instrument is designed and made as per the Industry Standard of People’s Republic of China SH/T 0248-2006 Standard Diesel and Domestic Heating Fuels – Determination of Cold Filter Plugging Point.
下载：
冷过滤器 塞点过滤器
产品详情
Standard Compliance: SH/T 0248
Technical Features
The cooling bath is dual- hole, allowing two samples to be tested simultaneously. The refrigeration temperature is intelligently controlled with high precision.
Adopts intelligent timing technology for easy parameter setting, with clear timing display and automatic stop when the set time is reached.
Equipped with an aspiration pump to effectively control the suction flow rate.
Complete accessories, including two negative pressure bottles for suction pressure control, fully meeting the requirements of SH/T 0248-2006.
技术规格
Power supply: 220V 50Hz
Temperature range: 60℃ ~ -50℃
Accuracy: ±0.1℃
Cooling method: Compressor refrigeration
Working bath: 1 bath with 2 holes
Total power consumption: ≤1200W
Ambient temperature: 5~35℃
Relative humidity: ≤85%
Dimensions: 550450420 mm
Weight: 30 kg

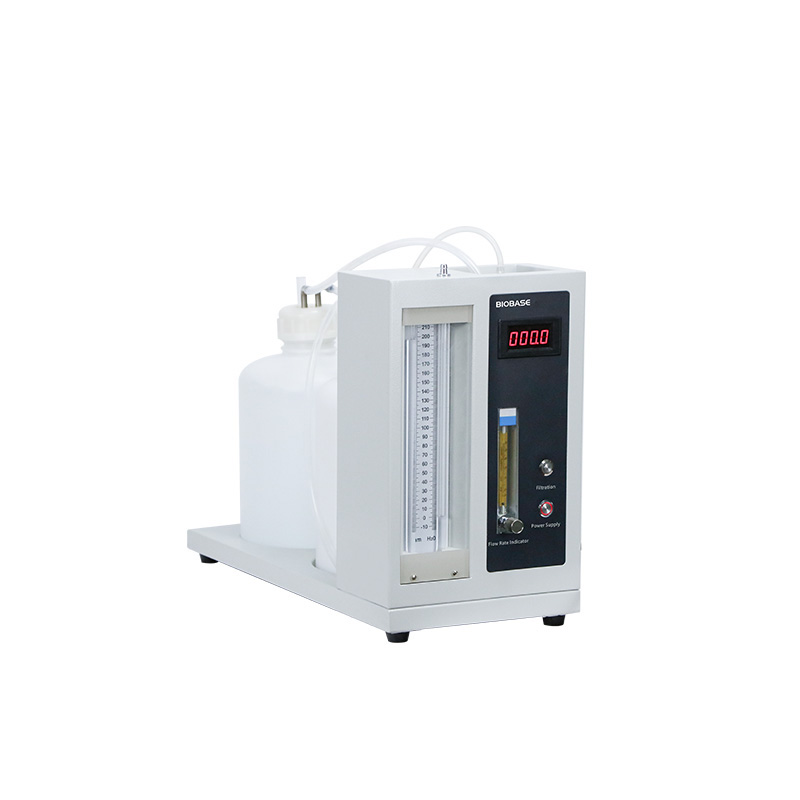

Cold Filter Plugging Point Suction Filtration Unit
Power supply: 220V 50Hz
Intelligent timer: Timing range 1 second ~ 99 hours, factory setting: 60 seconds 3
. U-tube differential pressure gauge: 0~300 mm
. Aspiration pump: Ultra-quiet, in compliance with SH/T 0248 5. Ambient temperature: 5~35℃
Relative humidity: ≤85%
Total power consumption: ≤100W
Dimensions: 200×450×400 mm
. Weight: 3 kg
Application: Can be used independently. When equipped with a suitable cooling bath and other required conditions, it
can perform cold filter plugging point tests.
