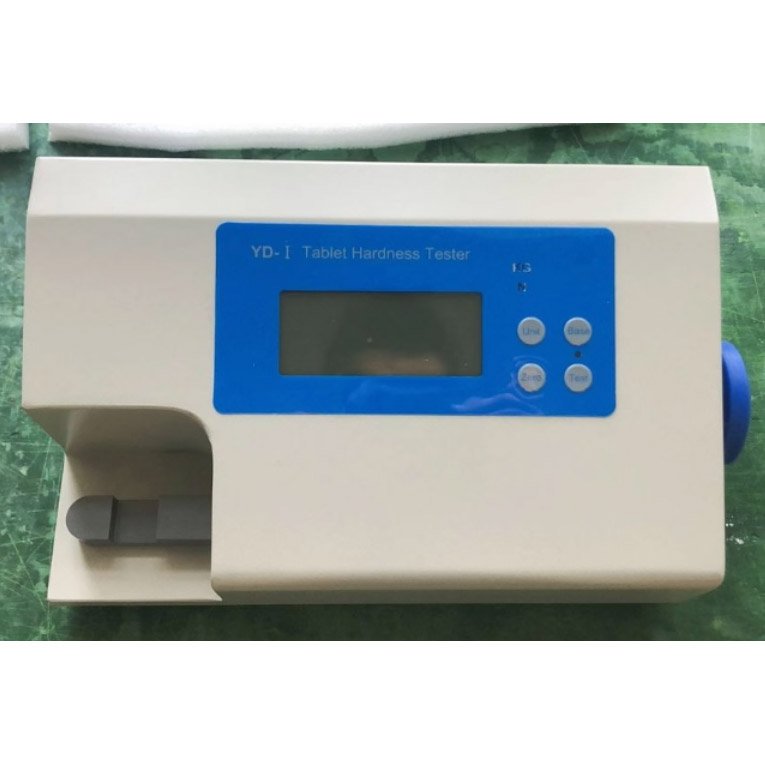

Тестер твердости таблеток YD-1

The tablet hardness tester is used to measure the crushing hardness of tablets.
Applicable Standard: JB/T20104-2007
Technical Specifications:
Hardness test range: 2-296N / 0.2KG-30KG
Resolution: 0.1N / 0.01Kg
Hardness measurement accuracy: ±0.5% of the full scale
Tablet test diameter: 2-30mm
Total machine power: 10W
Overall dimensions:Length*Width*Height (280mm180mm110mm)
1.High-precision pressure sensor ensures the accuracy and repeatability of tests.
2.Manual tablet loading and manual compression for easy operation.
3.The system supports automatic display, automatic lock, automatic reset, automatic cycle test, automatic linear error correction and automatic fault diagnosis.
4.Equipped with a unit conversion function, which can be realized both before and after the test.
5.Users can easily calibrate the measurement accuracy of the instrument regularly with standard weights.

Скачать:
Tablet Hardness Tester YD-1
