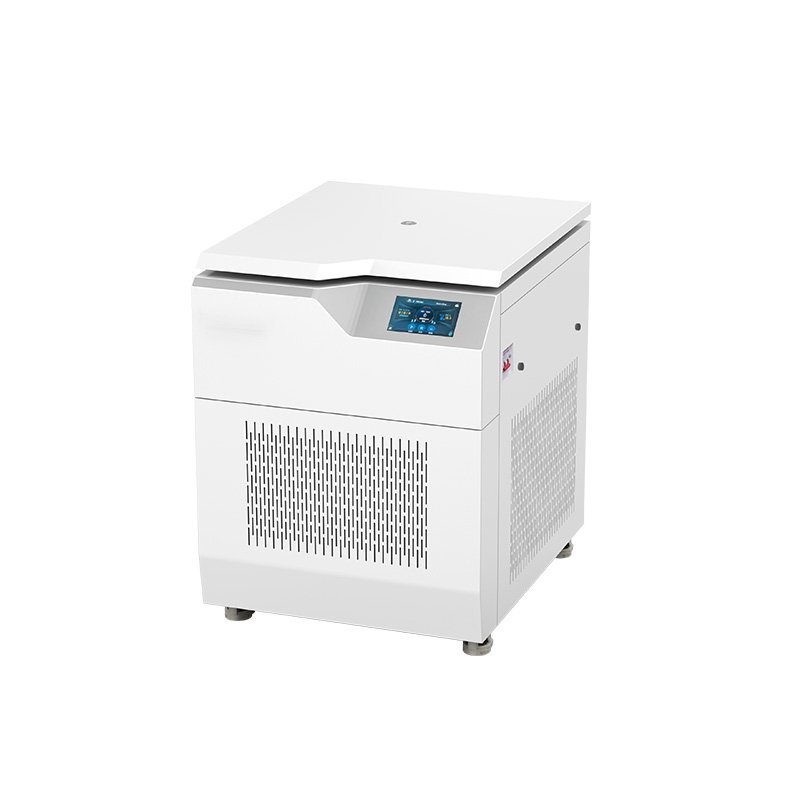

Низкоскоростная центрифуга BKC-VL8RD-L (под заказ)

Features:

1. High power AC frequency conversion motor direct drive, high precision, low noise, long service life.

2. Integral metal structure with multi-layer explosion-proof design, stainless steel centrifugal chamber combined with multi-stage shock absorption structure, to ensure the stable running and the safety of staff.

3. Adopt high efficiency and environmental protection refrigeration system, precise temperature control, no environmental pollution.

4. Microcomputer control, large color display. Programs can be compiled and stored, and speed, centrifugal force, time can be displayed at the same time.

5. 10 kinds of speed curves, 30 kinds of free programs can be variable and stored to meet different experimental needs.

6. Tri-grade adjustable damper, centrifugal effect to achieve the best, with electronic door lock, over-speed, over-temperature, automatic fault diagnosis function, multiple protection to ensure man-machine safety.

7. Equipped with a variety of rotors and adapters, 0.5~500ml adapters can be customized according to different experiments.

8. It can centrifuge 8*200ml or 4*400~500ml bags at one time.

9. Optional automatic rotor recognition.

Technical Parameters:

Модель

BKC-VL8RD-L

Max. Speed

7000rpm

Speed Accuracy

±20rpm

Max. RCF

10956×g

Max. Capacity

4*1200ml

Refrigeration System

CFC-free compressor

Timing Range

0~99min59s

Temp. Range

-20℃～+40℃

Temp. Accuracy

±1℃

Noise

≤60dB

Power Supply

AC220V, 50Hz(Standard); AC110V, 60Hz(Optional)

Rated Power

1500W

External Size(L*W*H)

670*820*900mm

Package Size(L*W*H)

Main Instrument: 920*760*1100mm

Rotor: 600*600*320mm

Net Weight

210kg

Gross Weight

Main instrument: 250kg(220V), 260kg(110V)

Rotor: 25kg

bag centrifugeRotor:

NO.

Rotor

Capacity

Max. Speed(rpm)

Max. RCF(×g)

NO.8D001

Angle Rotor

4*500ml

7000

8897

Adapter

4*100ml

Adapter

4*3*50ml

Adapter

4*8*15/10ml

NO.8D002

Angle Rotor

18*50ml

7000

7121

Adapter

18*15ml

Adapter

18*10ml

Adapter

18*3*1.5ml

NO.8D003

Angle Rotor

32*15ml

7000

7300

NO.8D004

Swing Rotor

4*1000ml

4000

3989

Adapter

4*26*2~5ml

Adapter

4*15*15~10ml

Adapter

4*5*50ml

Adapter

4*3*100ml

NO.8D005

Swing Rotor

4*1200ml

Adapter

4*400~500ml bag

4000 4025
Adapter

8*200ml bag

NO.8D006

Microplate Rotor

4*2*96 well

4000

2952

Adapter

4*32*1.5ml

NO.8D007

Angle Rotor

4*300ml

6000

5390

NO.8D008

Angle Rotor

6*300ml

6000

5660

NO.8D009

Swing Rotor

6*500ml

4000

3400
