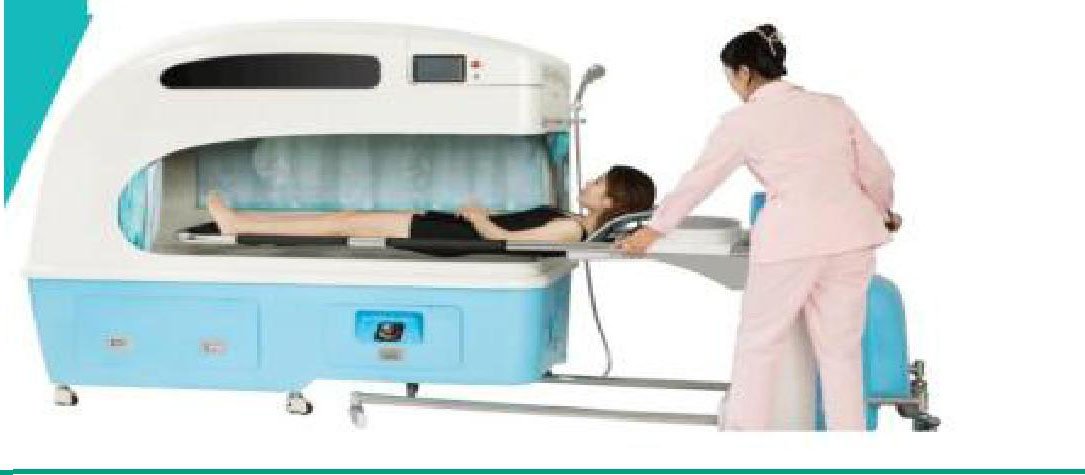

Горизонтальная душевая кабина

Ⅰ、Product Advantages

Safety: The overall exterior is made of non-metallic materials, providing safe insulation and preventing electric leakage from causing harm to the human body.
Stability: Utilizing triple-stage water temperature storage technology, it eliminates the influence of external pipeline water pressure that causes sudden temperature fluctuations during showering, ensuring a continuous and stable water supply.
Flexibility: Offers two entry methods (side/front) to meet different space layout requirements.
Intelligence: Software-defined showering modes and innovative smart IoT collaboration modes (optional).
Aesthetics: Brand new integrated molding process, beautiful and durable.

Ⅱ、Product features

1. Fully automatic cleaning
Automatic water mixing, cleaning, application of shower gel and moisturizer – easily completes the entire automated and comfortable bathing process with intelligent operation and one-button start.
2. Double-track side curtains
The waterproof curtains wrap around both sides, maintaining a constant temperature inside the compartment and preventing elderly people from catching a cold.
3.Programmable showering modes
Software-defined showering modes meet personalized showering needs, with user-friendly human-machine interaction that is simple and easy to learn.
4.Immersive Disinfection
11 disinfection nozzles provide immersive atomized disinfection, ensuring thorough sterilization with no blind spots. The built-in disinfectant solution is replaceable.
5.Multi-nozzle shower system with upper and lower spray heads
Featuring 16 shower nozzles and dual motors for upper and lower spray heads, providing a fully immersive and ultimate showering experience.

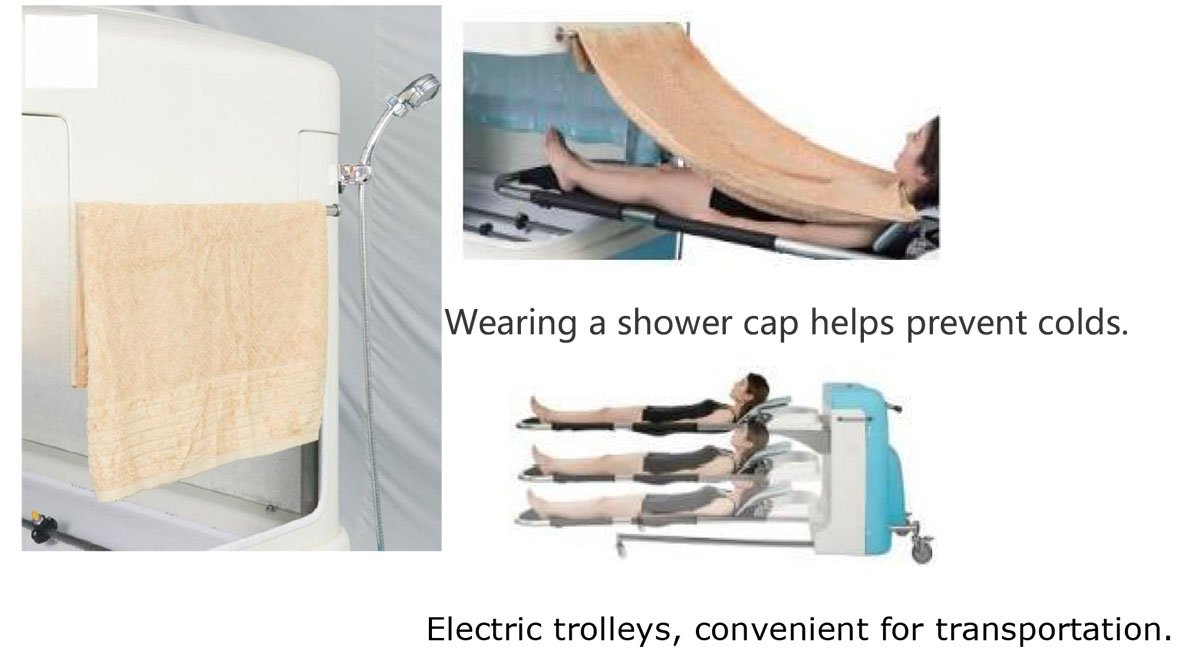

6.Electric lifting trolley
Electric lifting trolley, convenient for transferring elderly people.

Ⅲ、Main parameters

Water heating time: Approximately 10 minutes initially, followed by automatic water replenishment.
Upper nozzles: 8 channels, Lower nozzles: 8 channels
Disinfection nozzles: 11 channels
Main unit dimensions: Approximately 2.1M*1.1M*1.7M
Cart dimensions: Approximately 2.7M*0.93M*1.03M
Weight: Approximately 200 kg
Water tank capacity: Approximately 50 liters
External power supply: 220V/5A

Ⅳ、Main features

Mixing method: Manual setting
Bathing method: Side or front entry
Safety precautions: Automatic water tank temperature monitoring and alarm, cold water pre-drainage, high and low water temperature threshold warnings, trolley battery capacity display, and bath towel coverage after bathing.
Programmable parameters: Shower temperature, shower time, showering method, disinfection activation, position indication, etc.
Bath compartment insulation method: Double-rail side curtain, waterproof shower curtain.
