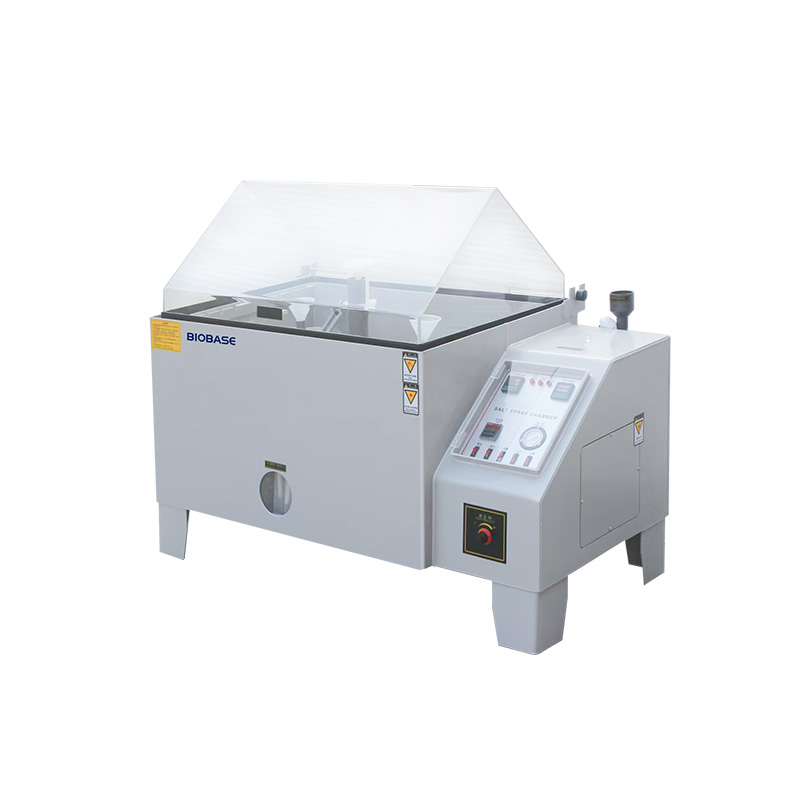

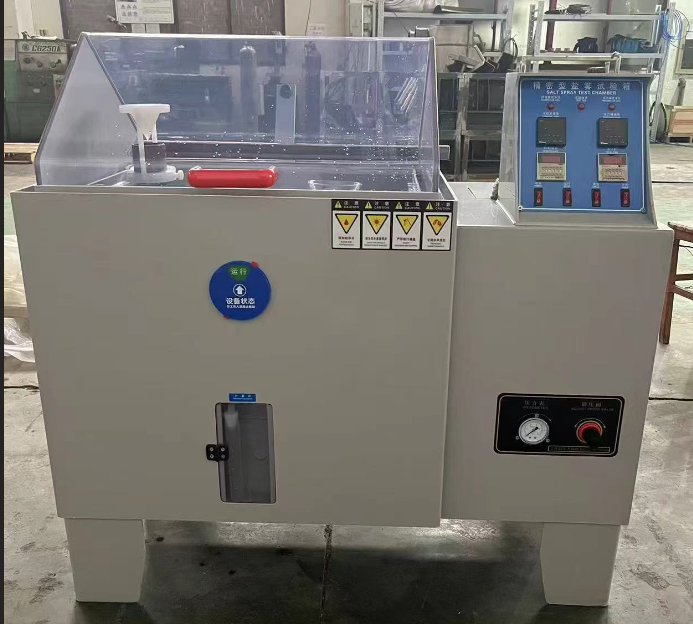

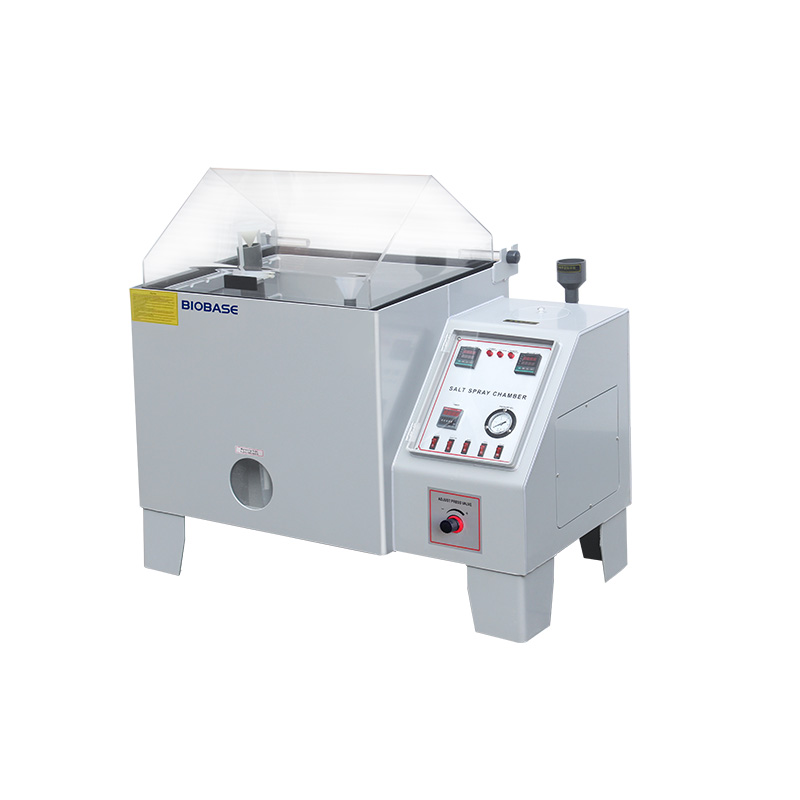

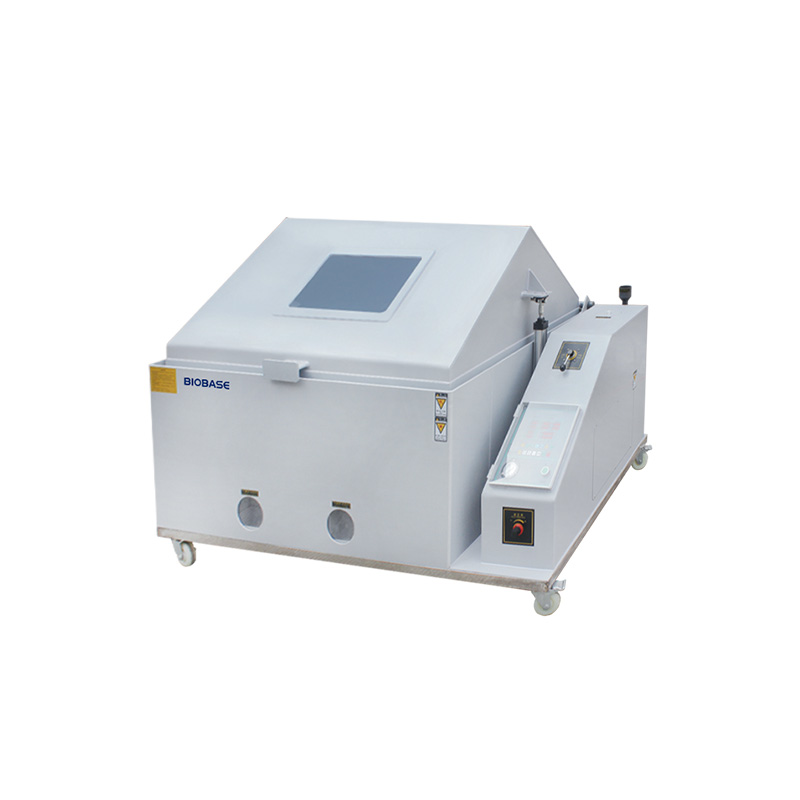

YF-YWX-60C Salt Spray Test Chamber

1. Touchscreen or button control panels are commonly used for their intuitive and user-friendly operation.
2. The lid is made of PVC panel with an acrylic observation window, while the inner and outer boxes are constructed from PP panel.
3. It features multiple safety protection mechanisms, including over-temperature protection, low water level alarm, leakage protection, and dual over-temperature protection.
4. Some models also feature automatic water replenishment and rapid mist removal, further enhancing user convenience.
5. This salt spray test machine features a one-touch energy-saving function, which significantly reduces energy waste and truly achieves energy conservation and environmental protection.
6. The system employs a PID intelligent algorithm for precise environmental parameter control, enabling accurate regulation of temperature, humidity, and salt spray deposition levels.
7. The system can simulate different environments, such as humid heat cycle, drying and condensation, to meet the needs of different products and testing standards.

Product Parameters
1. The spray system is mostly designed in tower type, equipped with salt solution filtration system, and the precision glass nozzle and conical disperser work together to make the fog volume spread evenly.
2. Capacity: 108L; Saltwater tank capacity: 15L
3. Saline spray test: NSS (neutral) test, AASS (acidic) test, CASS (copper accelerated) test, custom test, programmable test
4. Laboratory temperature: 35℃±1℃ (the set value must not be lower than the ambient temperature at the time)
5. Pressure air cylinder: 47°C ±1°C
6. Saline temperature: Preheated to the laboratory temperature
7. Temperature uniformity: ≤±2°C Temperature fluctuation: ≤±1°C
Temperature uniformity: ≤±2°C
Temperature fluctuation: ≤±1°C
8. Test duration: adjustable from 0 to 999 hours
9. Settling volume: 1–2 ml/80 cm²/h
10. Spray volume: 1.0–2.0 ml/80 cm²/h (collect data for at least 16 hours and calculate the average value)
11. Relative humidity in the laboratory: above 85%
12. pH: NSS: 6.5–7.2 AASS: 3.0–3.2
13. Spray method: Continuous spray
14. Power supply voltage: AC220V1 φ 10A
15. Studio dimensions: 600*450*400 mm; External dimensions: 1100*750*930 mm
